TMHS 75
TMHS 75
| Thông số Kỹ thuật | ||
|---|---|---|
| Designation | TMHS 75 | TMHS 100 |

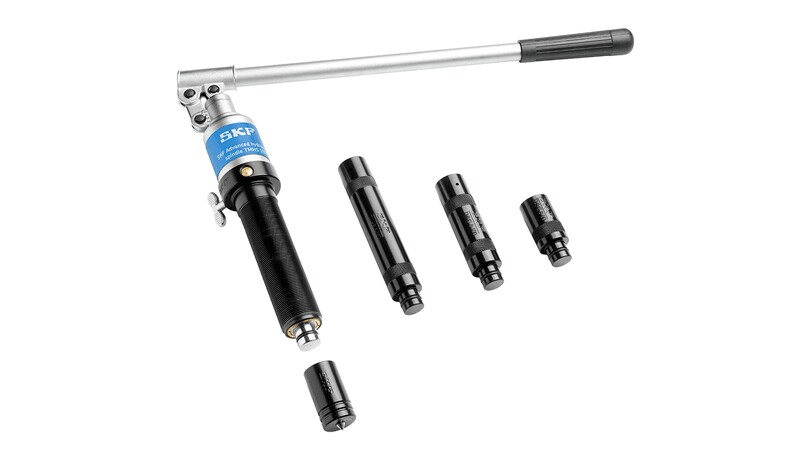

| Contents | 1 × hydraulic spindle | 1 × hydraulic spindle |
| 2 × extension pieces; 50 and 100 mm (2.0 and 3.9 in.) | 3 × extension pieces; 50, 100 and 150 mm (2.0, 3.9 and 5.9 in.) | |
| 1 × nosepiece | 1 × nosepiece | |
| Maximum withdrawal force | 75 kN (8,4 ton US) | 100 kN (11.2 ton US) |
| Piston stroke | 75 mm (3.0 in.) | 80 mm (3.1 in.) |
| Body thread | UN 11/4 × 12 | UN 11/2 × 16 |
| Nose piece diameter | 35 mm (1.4 in.) | 30 mm (1.2 in.) |
| Maximum reach | 229 mm (9.0 in.) | 390 mm (15.4 in.) |
| Weight | 2,7 kg (6.0 lb) | 4,5 kg (10.0 lb) |
Chúng tôi đảm bảo cung cấp hàng chính hãng SKF đầy đủ CO, CQ
